The Take Off has seen great success and enthusiasm, particularly from our riders in wing freestyle competitions, with Dream Team riders using our latest and smallest Take Off models in a range of events.

The 2024 Take Off has been completely redesigned to be a more performance-oriented freestyle wing foil model. A new size range with slightly longer but narrower sizes has allowed us to achieve faster Take Offs and more even flying when at speed. The streamline shape includes a thin nose for faster and more balanced flying, and the cutaway tail creates a narrow pin at the tip for reduced drag in the air and water. The bottom shape features sharp rails with a flat midsection for predictability and recovery in touchdowns from any angle.

The new Take Off range suits intermediate to advanced riders, with sizes from 5’3″ x 25.5″ and above catering for a range of foiling with wing and SUP foiling, and sizes from 5’0″ x 24.5″ down to 4’0″ x 18.5″ perfect for high-performance wing and foil surfing. The larger 7’0″ x 31″ and 6’3″ x 28″ are designed for heavier riders wanting to take their winging or SUP Foiling to new heights.



NEW NARROWER THINNER NOSE

Performance-focused, more manoeuvrable in turns, and faster when flying.



NEW CURVED ROCKER

The rocker is fine tuned for stable flight while being very forgiving when touching down. The rocker is optimized for the best control over the foil without needing to shim your foil.

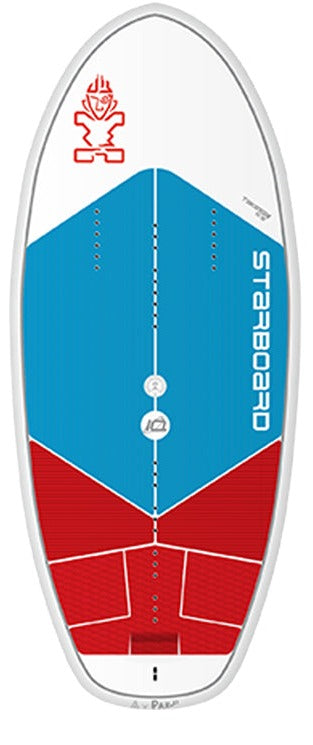

NEW RECESSED STANDING AREA

For the best possible connection, the standing area recess gives a direct connection to the foil. Smaller models are dug out even further for the best possible control.

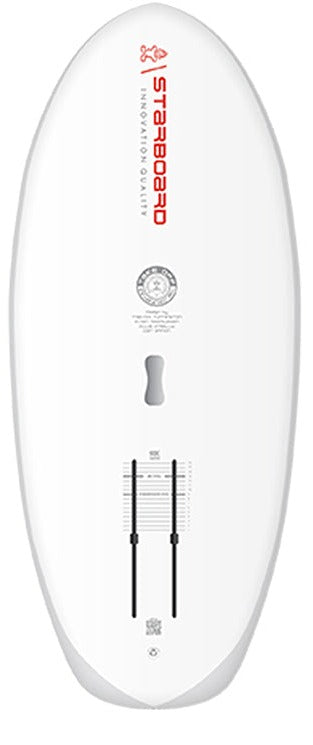

FLAT BOTTOM

The smooth release with sharp rail edges and the flat bottom give instant takeoff and are more predictable when touching down.



CUTAWAY TAIL

The cutaway forms a pin tail for better release in takeoff and less resistance when touching down.



NEW BRUSHED DECK PAD

The new brushed deck pad is less abrasive on the knees while offering comfort and grip. The Take Off also features a kick pad for wave surfing.



NEW V FOOTSTRAP SET

• Designed for the best comfort and performance in wingboarding, utilising the best Yulex neoprene construction in the industry to deliver a soft and secure footstrap.

• With a 60 degree angle, the new footstrap is designed to perfectly mould to the shape of your foot when inserted in our range of foil boards.

• Multiple footstrap screw holes are built into the reinforced yulex, giving riders the adjustability to angle the footstrap in their preferred riding position and angle.



NEW BOARD SOCK

Reduces paper waste while protecting your board from dust, scratches, and UV damage. Made with stretchable polyester, it fits various board shapes. Ensure optimal board maintenance with the iconic blue Board Sock, featuring a secure drawstring closure.



POSITION OF NOSE STICKER

Measure from the nose of the board:

4’0″ 9cm // 4’3″ 12cm // 4’7″ 16.5cm // 4’10” 17cm // 5’0″ 17cm //5’3″ 22cm // 5’5″ 22cm // 6’3″ 23cm // 7’0″ 28cm



CONSTRUCTION:

LITE TECH

LIGHT, STRONG, AFFORDABLE

• Extra rigidity with the introduction of unidirectional stringer bands and solid with added rail/ nose reinforcements.
• Australian pine on the standing area for extra impact resistance and rigidity in the most critical area.
• All inserts have added high-density foam reinforcements.



The big brother. The 7’0″ was scaled up from our 6’4″ model after demand from the bigger guys getting into the world of winging. The 7’0″ 130L Take Off is the perfect board to start and progress fast in winging for riders up to 135 kg, and makes for a stable and responsive SUP Foil model for riders up to 110 kg. We felt that this new Take Off design has superior takeoff speeds, excellent release from the cutaway tail, a stable performance outline, and easy touchdowns.

Model	7'0" x 31"	6'4" x 28"	5'5" x 26.5"	5'3" x 25.5"	5'0" x 24.5"	4'10" x 23"	4'7" x 22"	4'3" x 20"	4'0" x 18.5"
Rider Weight	Wing Foil: 130 kg	Wing Foil: 120 kg	Wing Foil: 110 kg	Wing Foil: 105 kg	Wing Foil: 95 kg	Wing Foil: 85 kg	Wing Foil: 80 kg	Wing Foil: 75 kg	Wing Foil: 60 kg
Length	7'1" / 213.4 cm	6'4" / 193 cm	5'7" / 165.1 cm	5'3" / 160 cm	5'0" / 152.4 cm	4'10" / 147.3 cm	4'7" / 139.7 cm	4'3" / 129.5 cm	4'0" / 121.9 cm
Width	31" / 78.7 cm	28" / 71.1 cm	26.5" / 16.5 cm	25.5" / 64.8cm	24.5" / 62.2 cm	23" / 58.4 cm	22" / 55.9 cm	20" / 50.8 cm	18.5" / 47 cm
Tail Width	23” / 58.7 cm	21.7” / 55.2 cm	21.3" / 54.1 cm	20.8" / 52.8 cm	20.2" / 51.2 cm	19.2” / 48.7 cm	TBC	TBC	TBC
Volume	130 L	110 L	95 L	85 L	75 L	65 L	55 L	40 L	30 L
Fin Set Up	US Box 14"	US Box 14"	US Box 14"	US Box 14"	US Box 14"	US Box 14"	US Box 14"	US Box 12"	US Box 12"
Weight	Lite Tech: 10.0 kg (Est.)	Blue Carbon: 7.8 kg (Est.) Lite Tech: 8.8 kg (Est.)	Blue Carbon: 7.1 kg (Est.) Lite Tech: 7.7 kg (Est.)	Blue Carbon: 6.1 kg (Est.) Lite Tech: 7.4 kg (Est.)	Blue Carbon: 5.9 kg (Est.) Lite Tech: 6.9 kg (Est.)	Blue Carbon: 5.4 kg (Est.) Lite Tech: 6.4 kg (Est.)	Blue Carbon: 4.9 kg (Est.)	Blue Carbon: 4.3 kg (Est.)	Blue Carbon: 3.7 kg (Est.)
