AIR FOIL

DIRECT FLIGHT

An inflatable wingfoil board that is easy to transport. Starboard’s innovative Air Foil board features a patented design top standing plate directly mounted to the foil base plate, for enhanced foil control and flight sensation.

AWARD-WINNING DESIGN

Our award-winning Starboard Air Foil sets the standard for innovation and performance, praised for its lightweight, stiffness, durability, and travel-friendly design.

NEW DELUXE LITE CONSTRUCTION

The lightest inflatable construction from Starboard is now available in the Air Foil range. It helps you take off earlier, fly faster and in lighter winds as well as conserve energy with every stroke and pump.

DIRECT FOIL RESPONSE

Patented Top Plate Technology, with just 1.5 cm between your feet and the foil, provides direct feedback and improved control. Combined with the solid standing plate, it enhances the flight experience on the inflatable foil board, eliminating any wobbly sensations.

Air Foil Deluxe Lite comes with an aluminium plate.
Air Foil Carbon Deluxe Lite comes with a carbon plate up to 2.4kg lighter.

CURVED ROCKER

The rocker is lifted in the nose and tail for easier takeoffs and more forgiving touchdowns.

NEW EVA PLUG

Secure fit plug seals pocket where foil base mounts. Creates a flush & smooth hull for the most efficient water flow under board and around foil mast.

COMPACT OUTLINE

The Airfoil, which takes its cue from the Wingboard composite, has a balanced, wide, and short form that makes it ideal for freestyle foiling and provides good stability prior to takeoff.

ADJUSTABLE FOIL TRACK

The foil track has enough room to adjust the foil depending on the style of riding and foil type.

3D RAIL EDGE RELEASE TECH

A proprietary 3D elastomer compound that follows the contours of the board rail to create a release edge that allows the boards to fully plane yet fold and roll up. Thanks to this 3D Rail Edge, you can accelerate for the fastest and easiest take off possible on an inflatable foilboard.

WELDED RAIL TECHNOLOGY

The Welded Rail Technology creates a completely airtight, mechanically bonded seam without the risk of glue weakening over time. This makes Starboard inflatable boards stronger and longer lasting.

All inflatable foil boards feature welded rails, both along the board and at the foil opening.

ADJUSTABLE FOOTSTRAPS

With an 18cm distance between the inserts, you can have a wider foot strap span for better trim and control while foiling since you can micro-adjust your feet’ position.

4 different positions for the footstraps in the front and 5 different positions for the straps in the back are available.

*The foot strap comes included with Carbon Deluxe Lite and can be purchased separately for Deluxe Lite.

LEASH, PUMP AND BAG

Included with the board: a coil leash, Tiki Pump with dual nozzles for both board and wing, and a travel-friendly wheelie bag that fits a complete wing foil set.

Ace Foil Deluxe lite (Aluminium) comes without a coil leash.

Construction:

DELUXE LITE CARBON

CARBON STANDING PLATE

› Air Foil Carbon Deluxe Lite comes with a carbon plate that is up to 2.4kg lighter than aluminium plate.

› The lightest inflatable construction with Woven Dropstitch: This makes the board lighter and stiffer for a more agile ride.

› Welded Rail Technology: Creates a complete airtight, mechanically bonded seam, eliminating the risk of glue weakening over time. Rails are welded both along the board and at the foil opening.

Model	6'7" x 29.5" AIR FOIL	5'9" x 28" AIR FOIL	5'4" x 27" AIR FOIL	4'11" x 25" AIR FOIL
Rider Weight	Up to 115 kg	Up to 100 kg	Up to 90 kg	Up to 80 kg
Length	6'7" / 200.7 cm	5'9" / 175.3 cm	5'4" / 162.6 cm	4'11" / 150 cm
Width	29.5" / 74.9 cm	28" / 71.1 cm	27" / 68.6 cm	25" / 63.5 cm
Thickness	4.75" / 12 cm	4.75" / 12 cm	4" / 10.2 cm	4" / 10.2 cm
Tail Width	20.9” / 53.0 cm	21.2” / 53.8 cm	20.4” / 51.8 cm	21.2” / 53.8 cm
Volume	136 L	116 L	81 L	73 L
Footstrap	Included with Air Foil Carbon	Included with Air Foil Carbon	Included with Air Foil Carbon	Included with Air Foil Carbon
Foil Set Up	Top Plate	Top Plate	Top Plate	Top Plate
Screws	Includes Top Plate Screws x 4	Includes Top Plate Screws x 4	Includes Top Plate Screws x 4	Includes Top Plate Screws x 4
Weight Deluxe Lite (Aluminium)	8.60 kg (Est.)	8.10 kg (Est.)	7.9 kg (Est.)	7.30 kg (Est.)
Weight Deluxe Lite (Carbon)	6.7 kg (Est.)	6.3 kg (Est.)	5.80 kg (Est.)	5.5 kg (Est.)
Construction	Deluxe Lite	Deluxe Lite	Deluxe Lite	Deluxe Lite
Carbon Footprint (incl. Accessories)	Alu: 63 kgCO2e Carbon: 61.7 kgCO2e	Alu: 59.3 kgCO2e Carbon: 58 kgCO2e	Alu: 57.9 kgCO2e Carbon: 53.4 kgCO2e	Alu: 53.5 kgCO2e Carbon: 50.6 kgCO2e

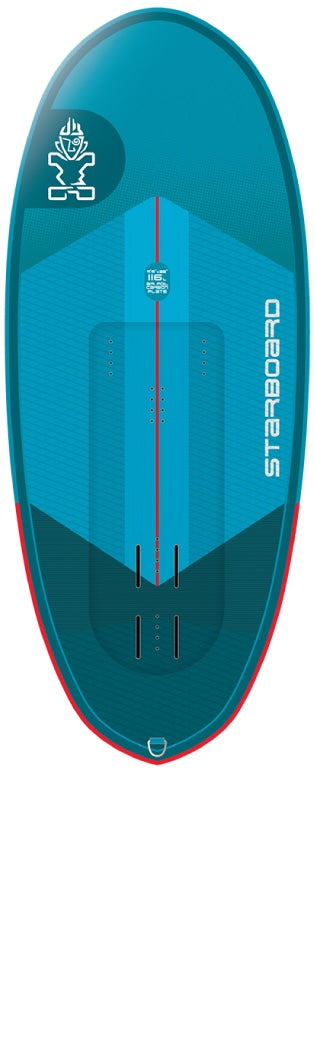

2025 STARBOARD INFLATABLE 5'9" X 28" AIR FOIL DELUXE LITE CARBON FOIL BOARD

Quantity
