TAKE OFF

PERFORMANCE FREESTYLE & WAVE

Tuned for the best performance during every stage of foiling: on water stability, take off and touch down. The new Take Off design allows for faster take off and easier recovery when touching down. The range features a comprehensive size offering to the next level in freestyle Wing, SUP and prone foiling.

HIGHLY VERSATILE FOILBOARD RANGE

Larger Take Off sizes are designed for SUP Foiling and intermediate Freestyle Winging, whereas smaller, lower-volume Take Off models are primarily designed for the best freestyle Wing experience with prone foil crossover abilities.

HIGHER ASPECT SIZE RANGE

Super fast in take-off, forgiving on touchdowns, high in-flight speeds and thinner design for precise control.

EXCELLENT CONTROL

The increased volume in the nose and tail, combined with a thinner standing area, ensures balanced volume distribution, resulting in excellent control.

VEE NOSE

Allows for easier recovery when jumping, smoother touchdowns at speed and improves pop up during take off.

BALANCED VOLUME DISTRIBUTION

Balanced nose, tail and rail volume gives you excellent stability before take off and when flying.

THIN STANDING AREA

Giving you the best connection to the foil. The deck angle is designed to give you the best control when foiling.

ROCKER LINE

Fine tuned rocker gives you early take offs, a balanced flight experience and the best chance of recovering after a jump or touch down.

BALANCED FOIL BOX

Designed to perform best in the center of the box, riders often choose to fine tune their position depending on their chosen foil sport. Prone foiling generally requires a further back position and riders using small foils for jumping often choose a further forward box position.

CUTAWAY TAIL ON SMALLER SIZES

Smaller sizes of the Take Off feature a cutaway tail for the fastest release for Wing Freestyle, whereas longer sizes feature a sloped tail for smooth release when SUP Foiling and freeride wing foiling.

CUSTOMISABLE INSERTS

Multiple foot strap positions let you choose between wider or narrower straps. Narrow straps offer more control, while wider straps make trimming easier. Larger boards have inserts angled inward for better balance, while smaller boards feature outward angles for added agility.

SCRATCH PROTECT NOSE STICKER

Protects your board from scratches and dings when placed on the ground, giving you peace of mind before and after your session.

CARRY HANDLE INSERT

The Take Off features an ergonomic center carry handle, for easy handling with foil.

14″ FOIL BOX

The 14″ box allows for foils from most brands and is extra reinforced to ensure stability and a direct transfer of energy from the foil to your feet.

*4’3″ x 18.5″ / 30L features a 12″ US Box

FOOTSTRAP SET INCLUDED

Designed for optimal comfort and performance in wingboarding, the footstrap features premium Yulex neoprene for a soft yet secure fit. With a 60-degree angle, it molds perfectly to your foot. Multiple screw holes offer adjustability, allowing riders to customize their positioning and angle.

*Only available with Blue Carbon construction

BOARD SOCK INCLUDED

Reduces paper waste and protects your board from dust, scratches, and UV damage. Made of stretchable polyester, it fits various board shapes and has a secure drawstring closure.

CONSTRUCTION:

LIMITED SERIES FOILBOARD

TIMELESS LOOK, SOLID PERFORMANCE

› Super-strong and lightweight biaxial carbon fiber is laminated on the deck and bottom over the foil for maximum stiffness and rigidity. A PVC stringer prevents impact damage and creates a secure mount for the foil box.

› Double-reinforced rails provide additional strength and stiffness, while multiple layers of fiberglass protect the entire board.

› Australian pine wood in the standing area offers extra impact resistance and rigidity in the most critical impact zone.

› All inserts feature high-density foam reinforcements, along with added rail and nose reinforcements for extra durability.

Model	6'0" x 24" TAKE OFF [NEW]	5'5" x 23" TAKE OFF [NEW]	5'2" x 22" TAKE OFF [NEW]	4'10" x 21" TAKE OFF [NEW]	4'7" x 20" TAKE OFF [NEW]	4'3" x 18.5" TAKE OFF [NEW]
Rider Weight	Wing Foil: 95 kg SUP Foil: 95 kg	Wing Foil: 85 kg SUP Foil: 75 kg	Wing Foil: 80 kg Prone Foil: 100kg	Wing Foil: 75 kg Prone Foil: 85 kg	Wing Foil: 70 kg Prone Foil: 80 kg	Wing Foil: 60 kg Prone Foil: 70 kg
Length	6'0" / 186.2 cm	5'5" / 170.5 cm	5'2" / 157 cm	4'10" / 145 cm	4'7" / 140 cm	4'3" / 130 cm
Width	24" / 61 cm	23" / 58.4 cm	22"/ 58 cm	21" / 53 cm	20" / 50 cm	18.5" / 47 cm
Thickness	5.6" / 14.1 cm	6.1" / 15.6 cm	5.6"/ 14 cm	5.2" / 13 cm	5"/ 12.5 cm	3.8" / 9.6 cm
Tail Width	19" / 48 cm	18.4" / 46.5 cm	18.2"/ 46.3 cm	17.4" / 44 cm	16.5" / 42.2 cm	15.9" / 40.3 cm
Aspect Ratio	3.0	2.8	2.8	2.7	2.8	2.7
Volume	95L	80L	70L	55L	45L	30L
Foil Box Set Up	2X 14" US Box	2X 14" US Box	2X 14" US Box	2X 14" US Box	2X 14" US Box	2X 12" US Box
Weight	Blue Carbon: 6.30 kg Limited Series: 8.13 kg	Blue Carbon: 5.68 kg Limited Series: 7.58 kg	Blue Carbon: 5.30 kg Limited Series: 7.10 kg	Blue Carbon: 4.74 kg	Blue Carbon: 4.24kg	Blue Carbon: 3.46kg
Stability	8.0	7.0	6.0	5.0	4.5	4.0
Maneuverability	7.0	7.5	8.0	9.0	10.0	10+

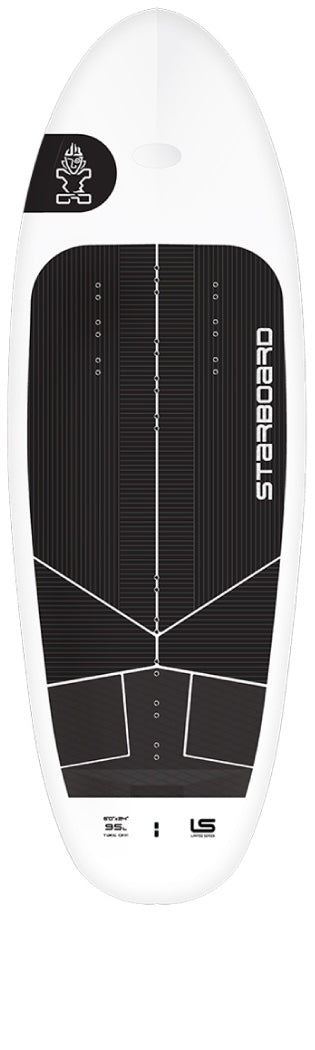

2025 STARBOARD 5'2" X 22.5" TAKE OFF LIMITED SERIES FOIL BOARD
